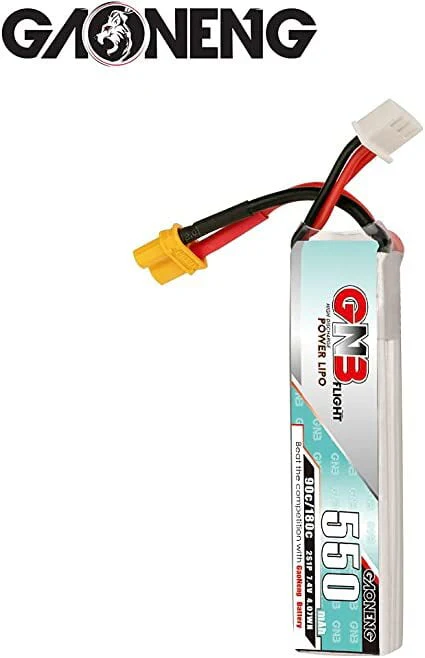

GNB 550mAh 2S1P 7.4V 90C Long Type Lipo Battery
SPECIFICATION
|
Model No. |
GNB5202S80AHV |
|
Capacity |
520mAh |
|
Configuration |
2S1P |
|
Nominal Voltage |
7.6V |
|

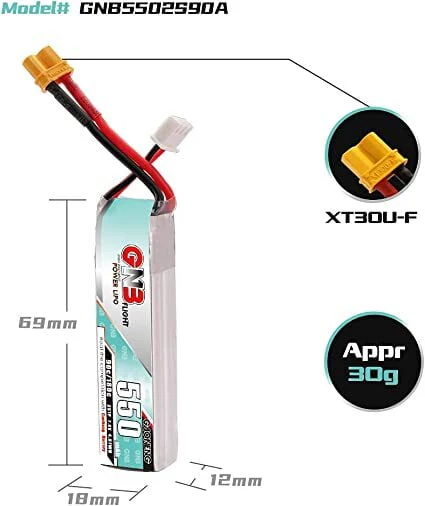

Dimension |
13*17*69mm Appr. |
|
Weight |
34g (+/-1g) |
|
Max cont. discharge (C-rate/current) |
80C |
|
Max Burst (C-rate/current) |
160C |
|
Charge Connetor |
JST-XH 3P |
|
Discharge Connetor |
XT30 |
|
Working Temperature Charge |
0~45°C |
|
Working Temperature Discharge |
(-20~60°C) |
|
Working Humility |
65%RH +/-20% |
|
Storage Temperature |
(-20~35°C) |
|
Storage Humility |
65%RH +/-20% |
|
Life Cycle |
300+ times |
SPECIFICATION
|
Model No. |
GNB5202S80AHV |
|
Capacity |
520mAh |
|
Configuration |
2S1P |
|
Nominal Voltage |
7.6V |
|
Dimension |
13*17*69mm Appr. |
|
Weight |
34g (+/-1g) |
|
Max cont. discharge (C-rate/current) |
80C |
|
Max Burst (C-rate/current) |
160C |
|
Charge Connetor |
JST-XH 3P |
|
Discharge Connetor |
XT30 |
|
Working Temperature Charge |
0~45°C |
|
Working Temperature Discharge |
(-20~60°C) |
|
Working Humility |
65%RH +/-20% |
|
Storage Temperature |
(-20~35°C) |
|
Storage Humility |
65%RH +/-20% |
|
Life Cycle |
300+ times |
Description
SPECIFICATION
|
Model No. |
GNB5202S80AHV |
|
Capacity |
520mAh |
|
Configuration |
2S1P |
|
Nominal Voltage |
7.6V |
|
Dimension |
13*17*69mm Appr. |
|
Weight |
34g (+/-1g) |
|
Max cont. discharge (C-rate/current) |
80C |
|
Max Burst (C-rate/current) |
160C |
|
Charge Connetor |
JST-XH 3P |
|
Discharge Connetor |
XT30 |
|
Working Temperature Charge |
0~45°C |
|
Working Temperature Discharge |
(-20~60°C) |
|
Working Humility |
65%RH +/-20% |
|
Storage Temperature |
(-20~35°C) |
|
Storage Humility |
65%RH +/-20% |
|
Life Cycle |
300+ times |
