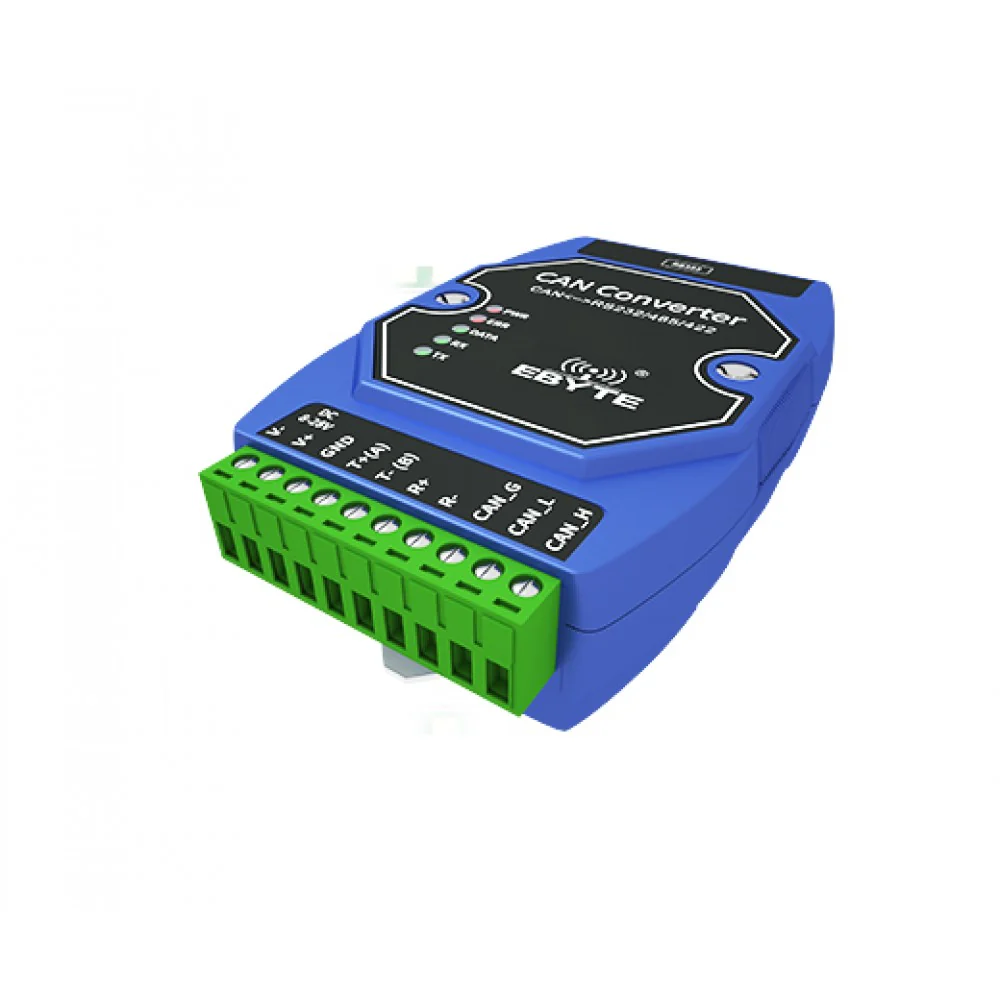

ECAN-401S modbus protocol CAN2.0 to RS485/RS232/RS422 can bus protocol converter data converter

ECAN-401S is a small intelligent protocol conversion product independently developed by ChengduEbyteElectronic Technology Co., Ltd. The product uses 8V～28V wide voltage power supply, integrates 1 CAN-BUS interface, 1 RS485 interface, 1 RS232 interface and 1 RS422 interface, which can realize two-way conversion between CAN and RS485/RS232/RS422 different protocol data.

The product supports serial AT command configuration and host computer configuration device parameters and working modes, and supports five data conversion modes including transparent conversion, transparent conversion with logo, protocol conversion, Modbus RTU conversion, and user-defined (user). At the same time, ECAN-401S intelligent protocol converter has the characteristics of small size, easy installation. It has a very high cost performance in the development of CAN-BUS products and data analysis applications. It is an engineering application and project debugging. And reliable assistants for product development.

Features

• Bidirectional conversion between CAN and RS485/RS232/RS422 different protocol data
• Support transparent conversion, transparent conversion with logo, protocol conversion, Modbus RTUconversion, custom protocol conversion
• Support RS485/RS232/RS422 interface parameter configuration
• Support AT command parameter configuration
• Support the configuration of upper computer parameters
• Support AT command and host computer to restore factory settings
• With power indicator, status indicator and other status indicators
• Multi-master and multi-slave function

Applications

• CAN-BUS network such as industrial control
• Networking of automobiles and railway equipment
• Security and fire protection network
• Underground remote communication
• Public address system
• Parking equipment control
• Smart home, smart building
