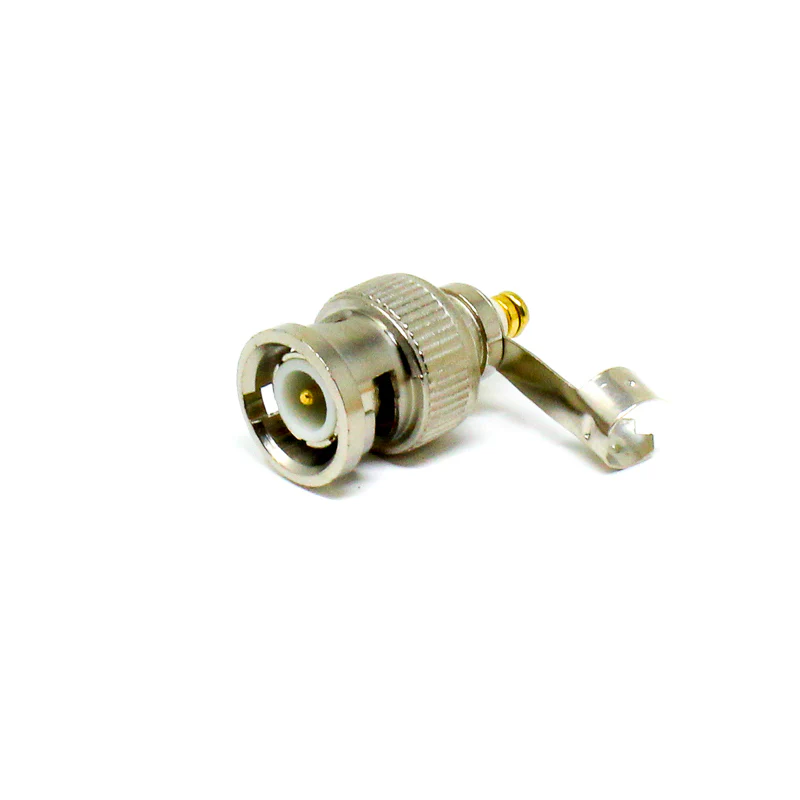

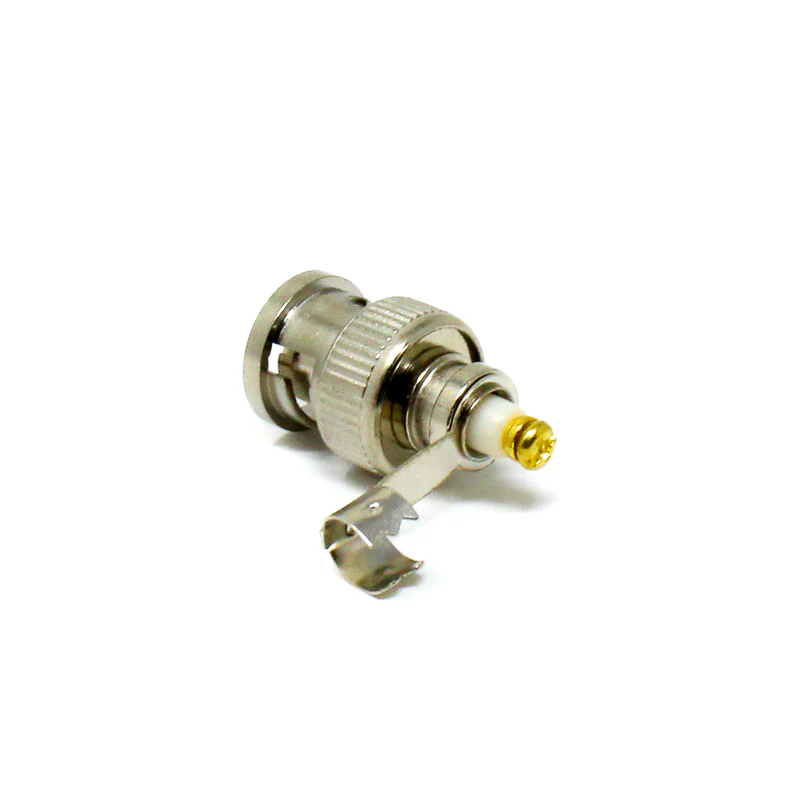

BNC Connector For CCTV Male Type With Plastic
BNC Connector For CCTV Male Type With Plastic
BNC Connector For CCTV Male Type With Plastic We at robu offer, a full range of cable mount BNC/TNC and a diverse range of RF connector plugs, jacks, and bulkhead jacks. These connectors are designed to terminate to industry-standard 50-ohm and 75-ohm cables with longer life, perfect designs, and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs.
Appliance: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Features:
- BNC Connector,Straight/180°, Male Plug, Solder Type,75ohm,brass plating nickel
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling
Environmental Characteristics
- Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101

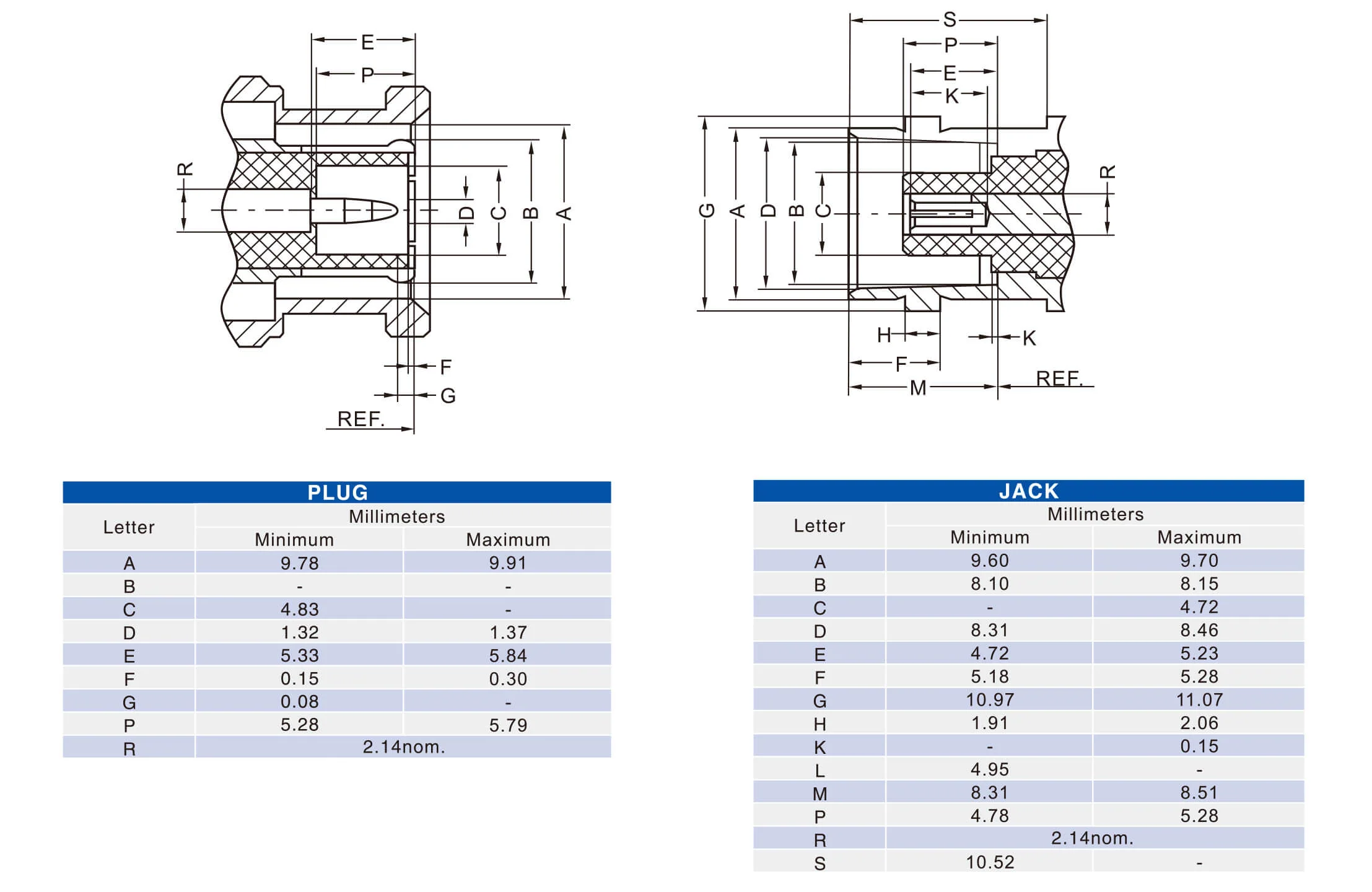

Note: Refer Schematic Image for Dimensional Details
BNC Connector For CCTV Male Type With Plastic
BNC Connector For CCTV Male Type With Plastic We at robu offer, a full range of cable mount BNC/TNC and a diverse range of RF connector plugs, jacks, and bulkhead jacks. These connectors are designed to terminate to industry-standard 50-ohm and 75-ohm cables with longer life, perfect designs, and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs.
Appliance: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Features:
- BNC Connector,Straight/180°, Male Plug, Solder Type,75ohm,brass plating nickel
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling
Environmental Characteristics
- Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Note: Refer Schematic Image for Dimensional Details
Description
BNC Connector For CCTV Male Type With Plastic
BNC Connector For CCTV Male Type With Plastic We at robu offer, a full range of cable mount BNC/TNC and a diverse range of RF connector plugs, jacks, and bulkhead jacks. These connectors are designed to terminate to industry-standard 50-ohm and 75-ohm cables with longer life, perfect designs, and durable industry-grade Standards and finish. . A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs.
Appliance: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Features:
- BNC Connector,Straight/180°, Male Plug, Solder Type,75ohm,brass plating nickel
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling
Environmental Characteristics
- Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Note: Refer Schematic Image for Dimensional Details
