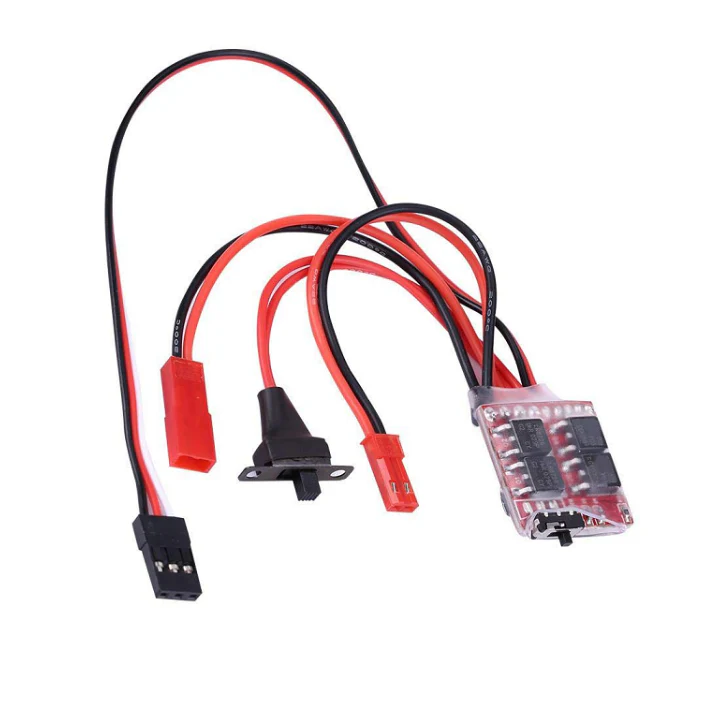

20A Brushed Electronic Speed Controller

20A Brushed Electronic Speed Controller

This 20A Brushed Electronic Speed Controller is a small-sized ESC that can supply a current up to 20A by using a 2S lipo battery as an input. The ESC accepts a standard RC signal as input and offers functions as forward, reverse, and breaking. This ESC has high-quality silicone cables for the battery input and the motor output.

Features

1. Continuous Current :20A
2. Battery Input: 2S Lipo
3. Can be used with 130/180/260/380 brushed motor
4. Three Functions: Forward/Reverse/Breaking

Specifications

Operating Voltage (VDC)	3 ~ 9
Constant Current	20A
Maximum Current	25A
Battery Input	Li-Po 2S
Driver Frequency	2KHz
