2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output
2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output

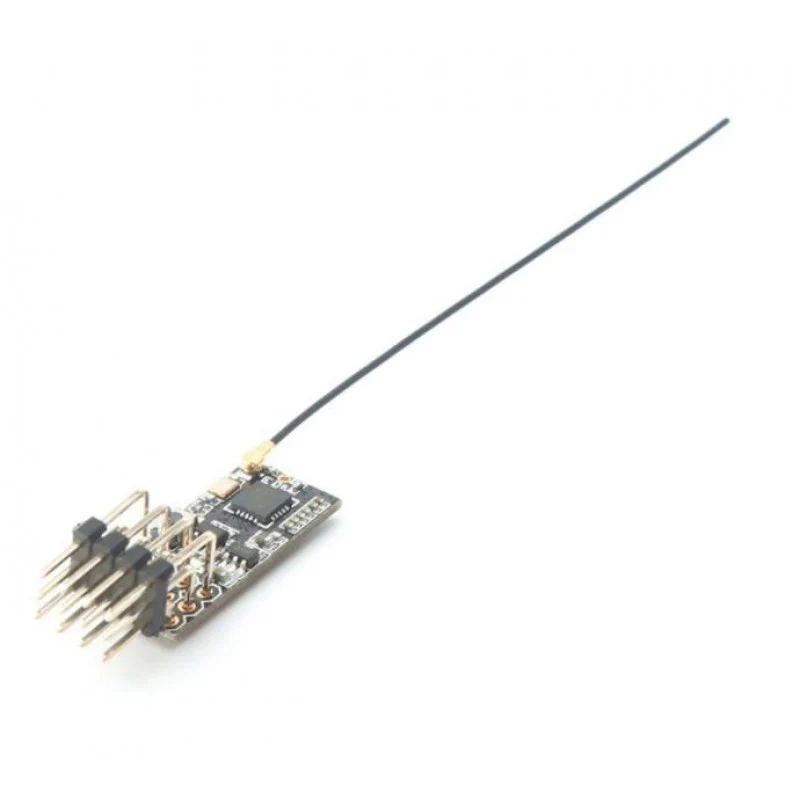

This is a 2.4G 4CH Mini Frsky D8 Compatible Receiver With PWM Output
How To Bind:
- X9D: Select D8 mode, power on receiver press and hold BIND, then led light, select BIND on the transmitter, receiver led off means binding is completed, transmitter exit binding mode, release BIND key and re-power.
- DJT, DFT: Hold the TX module button and power on the transmitter, at this point the TX module get into the binding mode. Power on receiver press and hold BIND, LED off when binding completed, release BIND key after transmitter restart, finally restart the receiver.
- XJT: Dip switch select D8 mode, and then the same way as above.
Package Includes :
1 x Frsky 2.4G 4CH Receiver
Specifications :-
| Channel |
4 |
| Resolution |
1024 |
| Operating Voltage (VDC) |
3.5-10V |
| Current Consumption (mA) |
50mA |
| Antenna Length (mm) |
100mm |
| Control Range |
>500M+ |
| Compatibility |
frsky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, DHT |
2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output
This is a 2.4G 4CH Mini Frsky D8 Compatible Receiver With PWM Output
How To Bind:
- X9D: Select D8 mode, power on receiver press and hold BIND, then led light, select BIND on the transmitter, receiver led off means binding is completed, transmitter exit binding mode, release BIND key and re-power.
- DJT, DFT: Hold the TX module button and power on the transmitter, at this point the TX module get into the binding mode. Power on receiver press and hold BIND, LED off when binding completed, release BIND key after transmitter restart, finally restart the receiver.
- XJT: Dip switch select D8 mode, and then the same way as above.
Package Includes :
1 x Frsky 2.4G 4CH Receiver
Specifications :-
| Channel |
4 |
| Resolution |
1024 |
| Operating Voltage (VDC) |
3.5-10V |
| Current Consumption (mA) |
50mA |
| Antenna Length (mm) |
100mm |
| Control Range |
>500M+ |
| Compatibility |
frsky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, DHT |
