125KHz EM4100 RFID Card Read Module
125KHz EM4100 RFID Card Read Module
PRODUCT DESCRIPTION

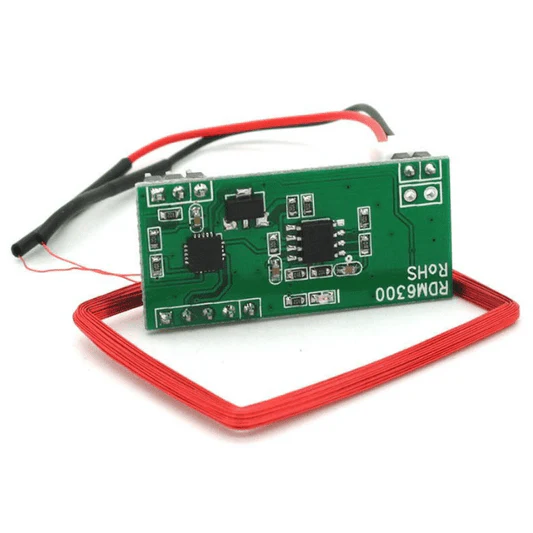

The RDM6300 125KHz EM4100 RFID Card ID Reader Module is capable of reading codes from read-only tags and read/write cards operating at a 125KHz frequency. It is versatile in its applications, including office and home security, personal identification, access control, anti-forgery measures, interactive toys, and production control systems.
Features:
- Maximum effective distance up to 150mm
- Less than 100ms decoding time
- Support external antenna
- Uart interface
- Support EM4100 compatible read-only or read/write tags
- Small outline design
Specification:
| Operating Frequency | 125KHZ |
|---|---|
| Baud Rate | 9600 |
| Interface | TTL level RS232 format |
| Working voltage | DC 5V(+/-5%) |
| Working current | <50mA |
| Receive distance | 20~50mm |
| Working temperature | -10°C~+70°C |
| Storage temperature | -20°C~+80°C |
| Humidity | 0~95% |
| Wiring size: | 46*32*3mm |
| PCB size | 38.5 x 20 mm |
| Weight | 7g |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
