100K 16mm Rotary Pot(Pack of 5)

Product image 1
1 / 4

100K 16mm Rotary Pot(Pack of 5)

100K 16mm Rotary Pot(Pack of 5)

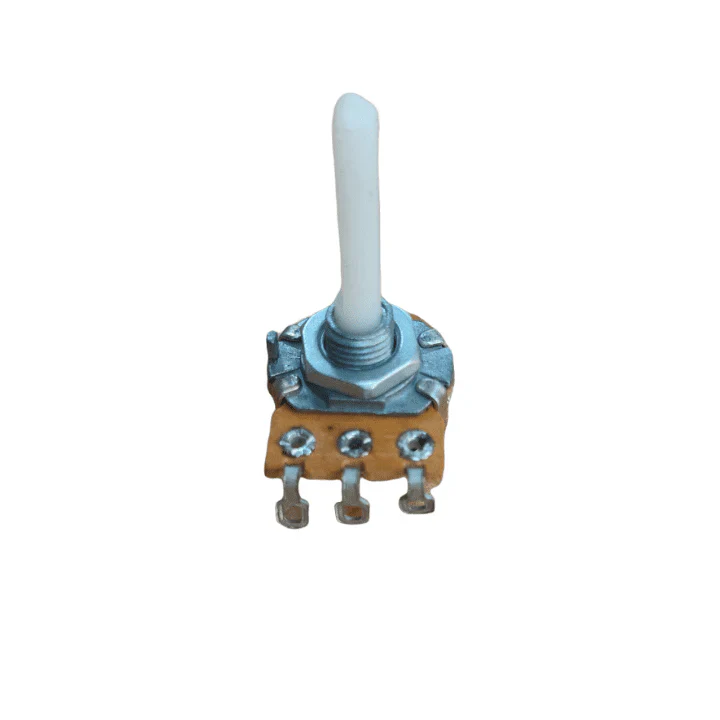

100K ohm 16mm Rotary Pot Variable Potentiometer

Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 100K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.  A potentiometer knob can also be used along with this POT for aesthetic purposes.

This is a carbon track, single turn, adjustable resistances, of value 100KOhm Knob potentiometer. It is meant for mounting on panel and is supplied complete with a knob. The knob is affixed on the plastic spindle of the potentiometer and turns the spindle which changes the resistance. The variation of resistance is linearly proportion to the degree of rotation. Potentiometer, in electronic parlance, is a manually variable resistance. Because its most common consumer application is for controlling volume/tone of sound in broadcast receivers, it is loosely referred to as "volume" or ''tone''. It is not a meter with scale and needle. Potentiometers look different depending on size, power handled, application, value and type of material used. There is, however, a common feature-there is wiper which sweeps over a length of resistive material. The two ends of the resistive material as also the wiper are available to the user as electrical terminations. The user gets a variable resistance between the wiper and the two ends.

Package Includes:

  • 5 x 100K ohm 16mm Rotary Pot Variable Potentiometer

Specifications:

Resistance (Ω) 100k
Total rotational angle 300° ± 5°
Withstand voltage for 1 minute or more at AC 500V
Total resistance tolerance ± 20% (more than 1MΏ ± 30%)
Length 16mm

100K 16mm Rotary Pot(Pack of 5)

100K ohm 16mm Rotary Pot Variable Potentiometer

Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 100K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.  A potentiometer knob can also be used along with this POT for aesthetic purposes.

This is a carbon track, single turn, adjustable resistances, of value 100KOhm Knob potentiometer. It is meant for mounting on panel and is supplied complete with a knob. The knob is affixed on the plastic spindle of the potentiometer and turns the spindle which changes the resistance. The variation of resistance is linearly proportion to the degree of rotation. Potentiometer, in electronic parlance, is a manually variable resistance. Because its most common consumer application is for controlling volume/tone of sound in broadcast receivers, it is loosely referred to as "volume" or ''tone''. It is not a meter with scale and needle. Potentiometers look different depending on size, power handled, application, value and type of material used. There is, however, a common feature-there is wiper which sweeps over a length of resistive material. The two ends of the resistive material as also the wiper are available to the user as electrical terminations. The user gets a variable resistance between the wiper and the two ends.

Package Includes:

  • 5 x 100K ohm 16mm Rotary Pot Variable Potentiometer

Specifications:

Resistance (Ω) 100k
Total rotational angle 300° ± 5°
Withstand voltage for 1 minute or more at AC 500V
Total resistance tolerance ± 20% (more than 1MΏ ± 30%)
Length 16mm
$24.00

Original: $80.00

-70%
100K 16mm Rotary Pot(Pack of 5)—

$80.00

$24.00

Description

100K 16mm Rotary Pot(Pack of 5)

100K ohm 16mm Rotary Pot Variable Potentiometer

Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 100K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short.  A potentiometer knob can also be used along with this POT for aesthetic purposes.

This is a carbon track, single turn, adjustable resistances, of value 100KOhm Knob potentiometer. It is meant for mounting on panel and is supplied complete with a knob. The knob is affixed on the plastic spindle of the potentiometer and turns the spindle which changes the resistance. The variation of resistance is linearly proportion to the degree of rotation. Potentiometer, in electronic parlance, is a manually variable resistance. Because its most common consumer application is for controlling volume/tone of sound in broadcast receivers, it is loosely referred to as "volume" or ''tone''. It is not a meter with scale and needle. Potentiometers look different depending on size, power handled, application, value and type of material used. There is, however, a common feature-there is wiper which sweeps over a length of resistive material. The two ends of the resistive material as also the wiper are available to the user as electrical terminations. The user gets a variable resistance between the wiper and the two ends.

Package Includes:

  • 5 x 100K ohm 16mm Rotary Pot Variable Potentiometer

Specifications:

Resistance (Ω) 100k
Total rotational angle 300° ± 5°
Withstand voltage for 1 minute or more at AC 500V
Total resistance tolerance ± 20% (more than 1MΏ ± 30%)
Length 16mm
