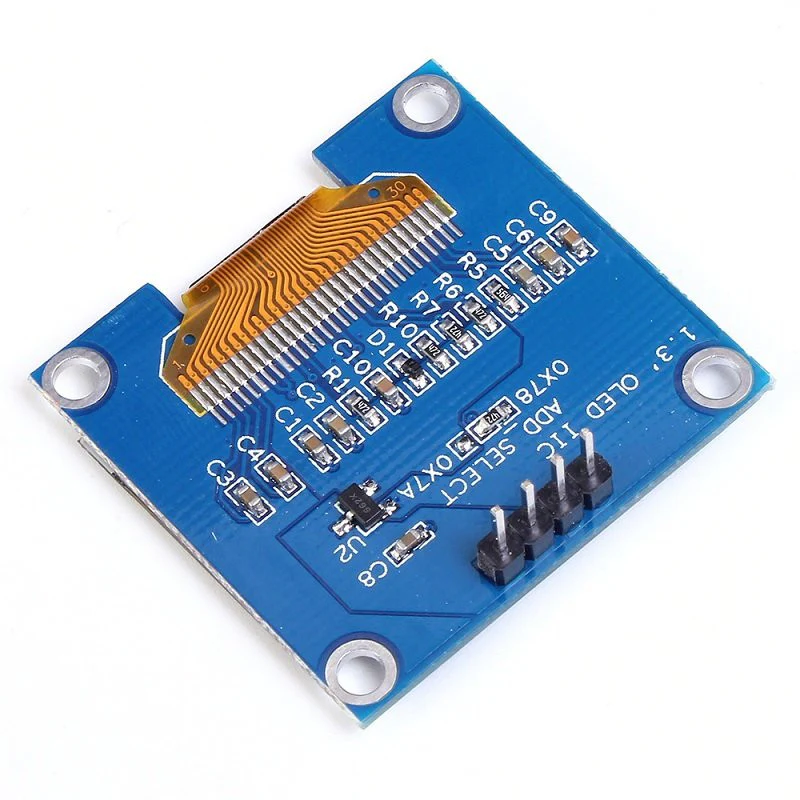

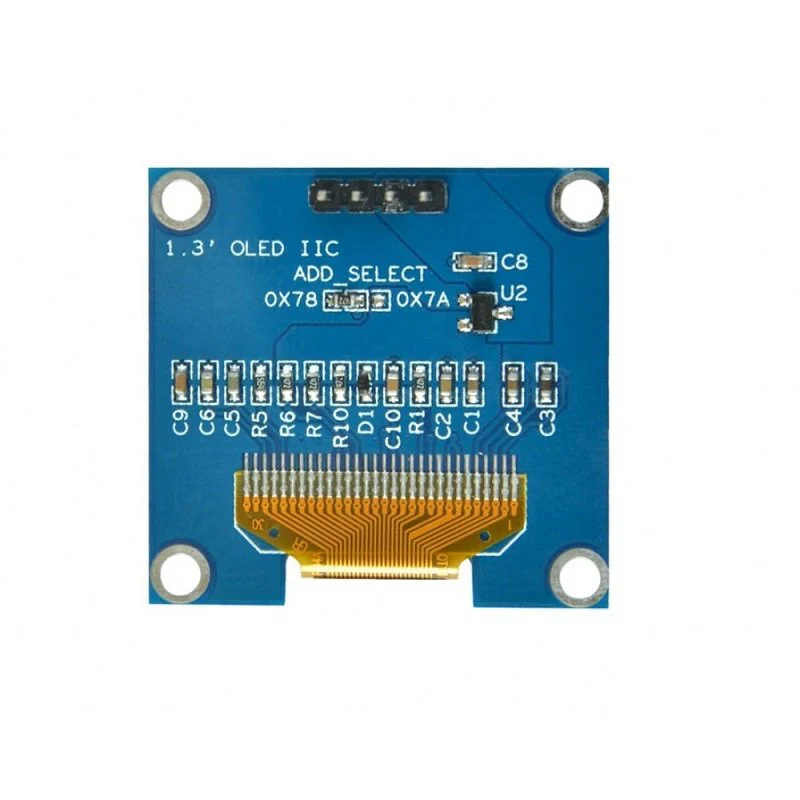

1.3 Inch I2C OLED Display Module 4pin- WHITE
1.3 Inch I2C OLED Display Module 4pin- WHITE
This 1.3 I2C OLED Display is an OLED monochrome 128x64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.
Pin Definition:
1.GND: Power ground
2.VCC: Power positive
3.SCL: Clock wire
4.SDA: Data wire.
Package Includes:
1 x 1.3 Inch I2C IIC 128x64 OLED Display Module 4 Pin - White
Specifications:
| Display Size |
1.3 inch |
| Resolution |
128 x 64 Pixels |
| Controlling Chip |
SSH1106 |
| Display Area |
34.5 x 19mm |
| Driving Voltage |
3.3-5V |
| Operating Temperature |
-40~70 Celsius |
| Interface Type |
IIC |
| Pixel Color |
White |
| Length (mm) |
35.5 |
| Width (mm) |
33.5 |
| Height (mm) |
4 |
| Weight (gm) |
7 |
